Schüco LivIng Alu Inside

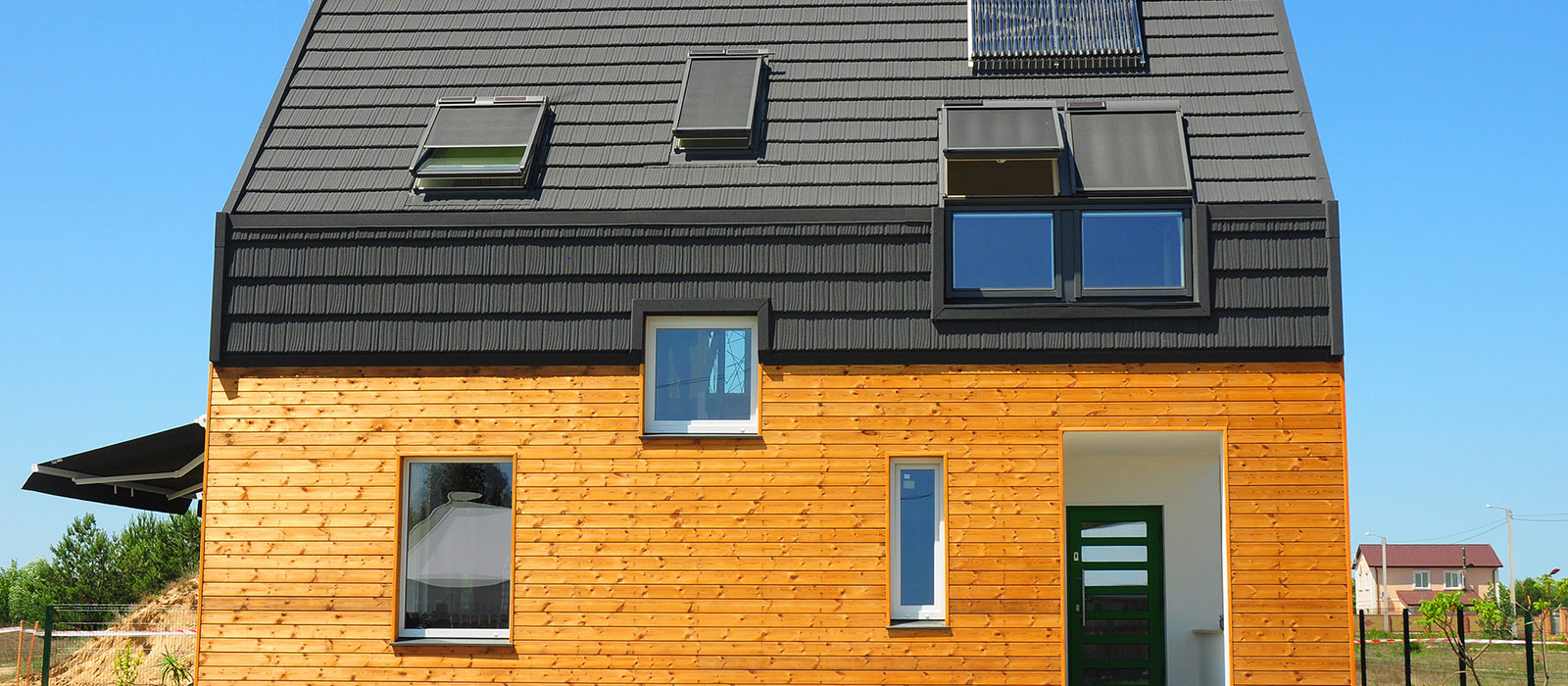

The trend of passive architecture, created with respect for nature and the environment, is developing very dynamically. In modern buildings, the most important aspect is energy saving.
The LivIng Alu Inside system is a response to the needs of energy efficiency and aesthetics. It uses a patented technology of joining aluminum with plastic.
Continuous aluminum reinforcements guarantee the whole structure almost identical stability to that achieved by steel reinforcements.
According to the 7-chamber structure of the profiles and the appropriate arrangement of aluminum reinforcements, thermal bridges were eliminated in the Schüco LivIng Alu Inside system. The smooth surface of aluminum reflects approx. 90% of thermal radiation.
Excellent thermal insulation parameters are result of: optimal division of the chambers, reduction of the rebate gap and additional large-volume isolation zones.
Installation depth 82 mm
Number of chambers 7
Glazing package Ug=0,5
Permeation coefficient Uw=0,68*

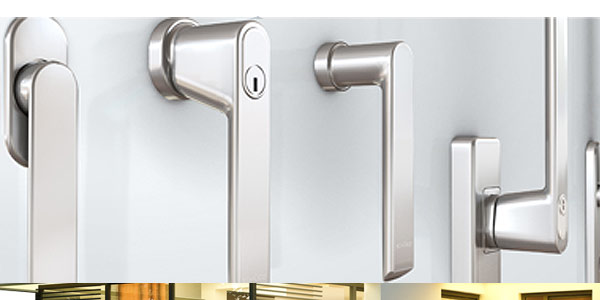

Fittings Winkhaus
*for the reference window 1230x1480 mm
